High Power Distribution Blocks – The 9D Series

OUR RANGE

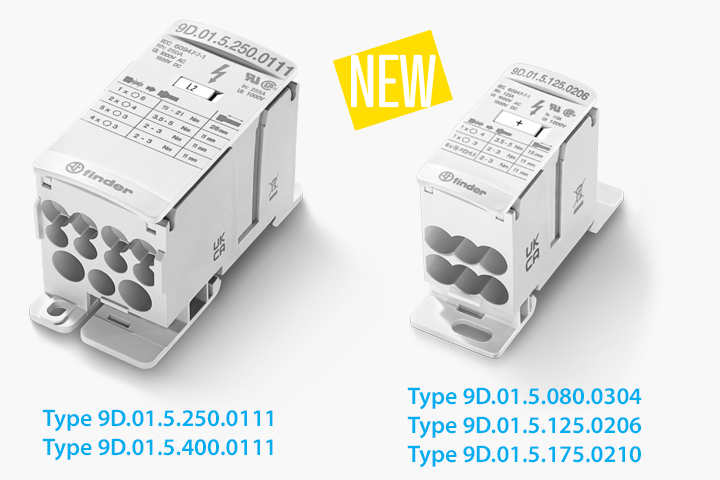

Finder releases a new series of Power Distribution Blocks for use in control panels and machinery from 80 A through 400 A: The 9D Series!

The new 9D Series will provide easy distribution solutions from the main power input to multiple outputs. These components offer easy solutions for panel construction with a snap on, reversible or removable, two way opening hinged cover. Use as single pole splitter of main inputs or a multi-pole splitter with interlocking function built into the side of the block.

Marking kit (L1, L2, L3, N, PE, +, -) delivered with each part number.

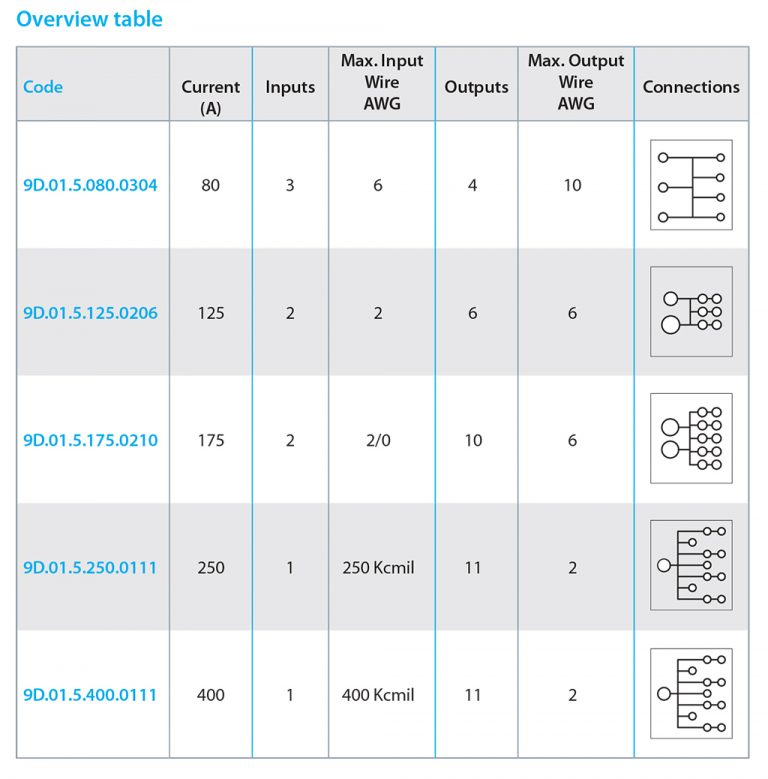

  • 80, 125, 175, 250 and 400 A
  • available with 7, 8 or 11 output
    connections (according to type)
  • SCCR rating 100 kA
  • cable capacity up to 400 Kcmil
  • 35 mm rail (EN60715) mount

Book a Finder-15 Video Sales Call to discuss your configuration and thermoregulation products in detail.

See the difference. Explore the difference. Enhance your designs with Finder.
