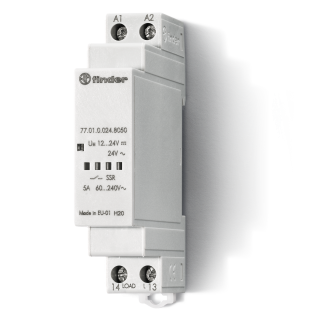

Type 77.01 - Modular Solid State Relay 5A

  • 17.5 mm wide
  • 60 to 240 V AC output (with double SCR)

Type 77.11 - Modular Solid State Relay 15A

  • Width 22.5 mm, heat sink + plastic casing
  • 24 to 277 V AC output (with triac)

Type 77.21 - Modular Solid-State Relay with heat-sink

  • Versions available with 'Zero- crossing' or 'Random switch' switching
  • Width 22.5 mm, heatsink + plastic casing

Type 77.25 - Hockey puck Solid State Relay 25A

  • "Hockey Puck" style
  • 24 to 240 V AC output

Type 77.31 - Modular Solid State Relay 30A

  • Width 22.5 mm, heat sink + plastic casing
  • 60 to 440 V AC output (with double SCR)

Type 77.45 - Hockey puck Solid State Relay 40A

  • "Hockey Puck" style
  • 24 to 240 V AC output

Type 77.55 - Hockey puck Solid State Relay 50A

  • "Hockey Puck" style
  • 24 to 240 V AC output

Type 77.A1 - Hockey puck Solid State Relay

  • Zero-crossing switch-on
  • Output: 25 A

Type 77.A2 - Hockey puck Solid State Relay

  • Random switch-on
  • Output: : 25 A/600 V AC

Type 77.A3 - Hockey puck Solid State Relay

  • Random switch-on
  • Output: 25 A/600 V AC

Type 77.B1 - Hockey puck Solid State Relay

  • Zero-crossing switch-on
  • Output: 40 A

Type 77.B3 - Hockey puck Solid State Relay

  • Random switch-on
  • Output: 40 A/600 V AC

Type 77.C2 - Hockey puck Solid State Relay

  • Random switch-on
  • Output: 50 A/600 V AC

Type 77.D1 - Hockey puck Solid State Relay

  • Zero-crossing switch-on
  • Output: 60 A

Type 77.D3 - Hockey puck Solid State Relay

  • Random switch-on
  • Output: 60 A/600 V AC

Type 77.E2 - Hockey puck Solid State Relay

  • Random switch-on
  • Output: 75 A/600 V AC

Type 77.F1 - Hockey puck Solid State Relay

  • Zero-crossing switch-on
  • Output: 80 A

Type 77.F3 - Hockey puck Solid State Relay

  • Random switch-on
  • Output: 80 A/600 V AC

Type 77.G1 - Hockey puck Solid State Relay

  • Zero-crossing switch-on
  • Output: 100 A

Type 77.H1 - Hockey puck Solid State Relay

  • Zero-crossing switch-on
  • Output: 125 A

ACCESSORIES

020.01

Adaptor for panel mounting

-Plastic
-17.5 mm wide
-For 77.01 only

022.09

Separator for rail mounting

-Plastic
-9 mm wide

060.48

Sheet of marker tags

-For all relays

-48 tags

-6 x 12 mm

-CEMBRE Thermal transfer printers

077.25

Heat-sink

Anodized aluminium
-0.9 K/W
-111 x 100 mm
-For 77.45 and 77.55

077.55

Heat sink

-Anodized aluminium
-0.9 K/W
-111 x 100 mm
-For 77.45 and 77.55
