Type 56.32/34 - Miniature power relay 12A
- Flange mounting possible using adaptor with 187 Faston, 4.8 x 0.5 mm connections
- AC or DC coil
LOAD
FINDER'S APPS
Explore finder
Explore more
56 Series
Miniature Power Relays 12A
Function and features:
Finder’s 56 Series power relays include the following features (according to Type):
- AC & DC coils
- PCB or Plug-in mounting
- Flange mount option (187 Faston termination)
- Available with lockable test button, mechanical flag & LED indicator
Accessories: 99 Series
Applications
Industrial furnaces and ovens
Control and management of electric power
Industrial motors
Circuit breakers and switches
Control panels
Panels for electrical distribution
Carousel warehouses
Vending machines
Configure your product
Product List
Documentation
Approvals

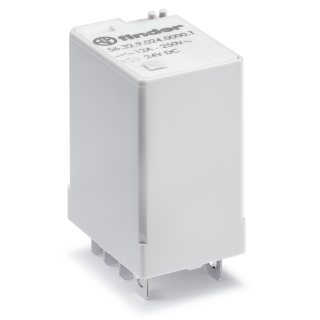

Type 56.32T - Relay for railway applications 12A
- Compliant with EN 45545-2 + A1: 2016 (protection against fire and smoke), EN 61373 (resistance to shock and vibration, category 1, class B), EN 50155 (resistance to temperature and humidity, class TX)
- AC or DC coil with extended operating range
Type 56.34T - relay for railway applications 12A
- Compliant with EN 45545-2 + A1: 2016 (protection against fire and smoke), EN 61373 (resistance to shock and vibration, category 1, class B), EN 50155 (resistance to temperature and humidity, class TX)
- AC or DC coil with extended operating range
Type 56.42/44 - Miniature power relay 12A
- AC or DC coil
- Cadmium-free contacts (standard version)
ACCESSORIES
Top flange mount adaptor
For 56.32
Rear flange mount adaptor
For 56.32
Top flange mount adaptor
For 56.34
Top 35 mm rail (EN 60715) adaptor
For 56.34
Sheet of marker tags
-For relay type 56.34
-Plastic
-48 tags
-6 x 12 mm
-For CEMBRE thermal transfer printer
Top flange mount adaptor
For 56.34
