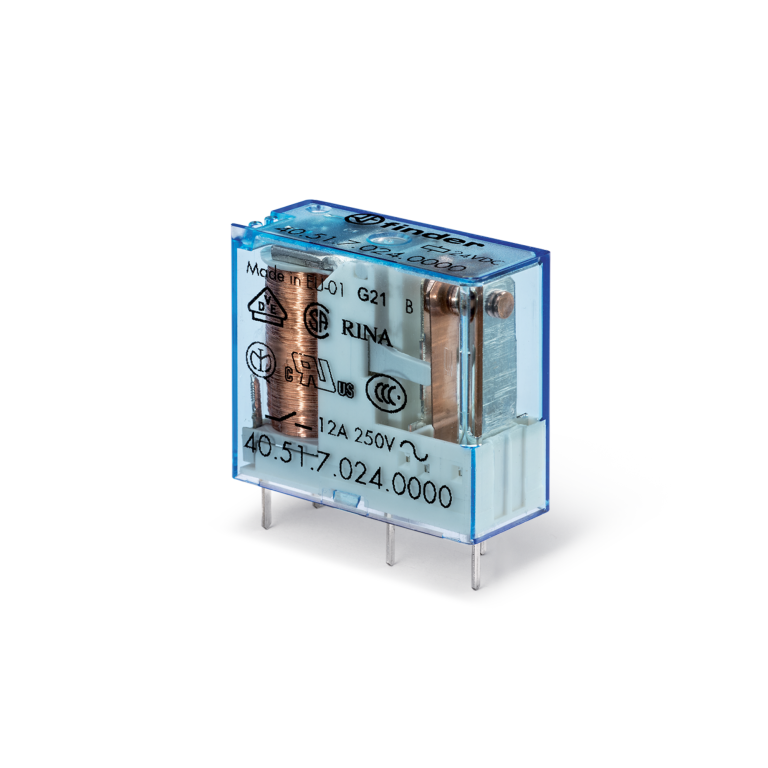

Type 40.51 miniature relay 1 CO 10 A, 5.0 mm pin pitch for printed circuit boards, and plug-in with the 95 Series sockets.
Features include:
<ul>
<li>Pin length 3.5 mm for PCB mounting</li>
<li>Pin length 5.3 mm for plug-in relays</li>
<li>DC coil (650 mW or 500 mW)</li>
<li>Variant with cadmium-free contacts</li>
<li>8 mm, 6 kV (1.2/50µs) insulation between coil and contacts</li>
<li>Compliance with the Glow wire test according to EN 60335-1</li>
<li>For use with 95 Series sockets with push-in, screw or spring terminals for mounting on 35 mm rail (EN 60715) or PCB</li>
<li>For use with 99 Series coil indication and EMC suppression modules and Type 86.30 timer modules</li>
<li>Protection category:
• RT II &#8211; flux proof (Standard)
• RT III &#8211; washable (Special version)</li>
</ul>

Function and features:

CQCC

CHINA COMPULSORY CERTIFICATE

Canadian Standard Association (CSA)

EurAsian Conformity (EAC)

ENEC

European Norms Electrical Certification (ENEC)

LLOYD'S REGISTER

Lloyd’s Register of Shipping

Registro Italiano Navale (RINA)

cURus

UL RECOGNIZED

VDE Prüf- und Zertifizierungsinstitut Zeichengenehmigung

Russian Maritme Register of Shipping

Report

40 Serisi - Minyatür PCB/fişli röleler 8-10-12-16 A

Technical datasheets

Instruction manuals

KNX Manual

Toolbox user manual

Communication protocol

Solutions for electrical panels and industrial automation

Soluciones industriales y productos automatizacion industrial

Soluzioni per il quadro elettrico e l'automazione industriale

Produse pentru tablouri electrice si automatizari industriale

Brochure

Selection guide

Catalogs

Other

Declarations of conformity

Guide

Software

3D files

DXF files

https://cdn.findernet.com/app/uploads/2020/04/21084835/4051-pcb-plug-in-relay-768x768.png

Type 40.51 miniature relay 1 CO 10 A, 5.0 mm pin pitch for printed circuit boards, and plug-in with the 95 Series sockets.
Features include:

Pin length 3.5 mm for PCB mounting
Pin length 5.3 mm for plug-in relays
DC coil (650 mW or 500 mW)
Variant with cadmium-free contacts
8 mm, 6 kV (1.2/50µs) insulation between coil and contacts
Compliance with the Glow wire test according to EN 60335-1
For use with 95 Series sockets with push-in, screw or spring terminals for mounting on 35 mm rail (EN 60715) or PCB
For use with 99 Series coil indication and EMC suppression modules and Type 86.30 timer modules
Protection category:
• RT II &#8211; flux proof (Standard)
• RT III &#8211; washable (Special version)



40 Series - Miniature PCB Relays 8 - 10 - 12 - 16 A
