<h3 style="text-align: center;">Programming for IEC 61131-3 Languages</h3>
Expanding the OPTA series, Finder launches a new <a href="https://opta.findernet.com/en/codesys" target="_blank" rel="noopener">CODESYS® PLR platform with expansion modules</a>. Full of features, the series provides a complete solution for designers looking towards a small package with enhanced performance.

Specs​
<ul>
<li>STMicro Dual Core Processor​</li>
<li>Flash memory – 2 MB Int + 16MB flash QSPI​</li>
<li>8 Digital or analog inputs – user configurable​</li>
<li>Analog inputs 16 to 12 bit – user configurable​</li>
<li>4 NO relay outputs – 10 A / 250 V AC​</li>
</ul>
&nbsp;
Communication
<ul>
<li>USB​</li>
<li>1 Gbit ethernet &#8211; Modbus TCP/IP​</li>
<li>RS485 &#8211; Modbus RTU communication​</li>
<li>Wi-Fi BLE *​</li>
</ul>
* in development

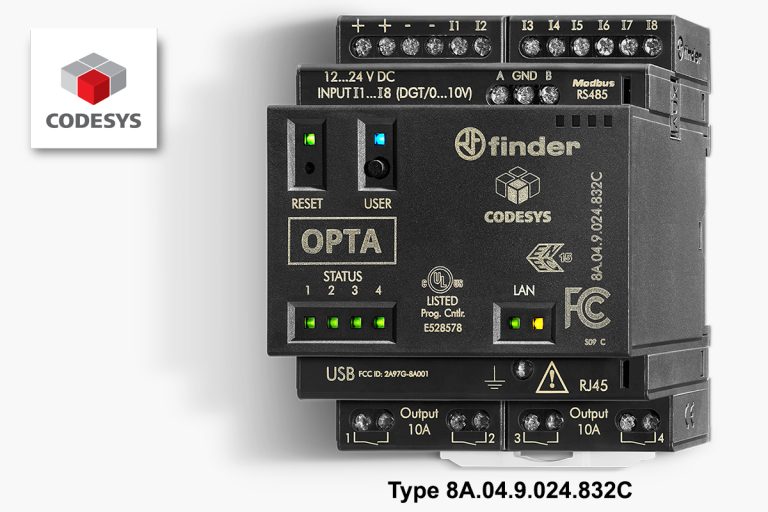

The Controller

<h1></h1>

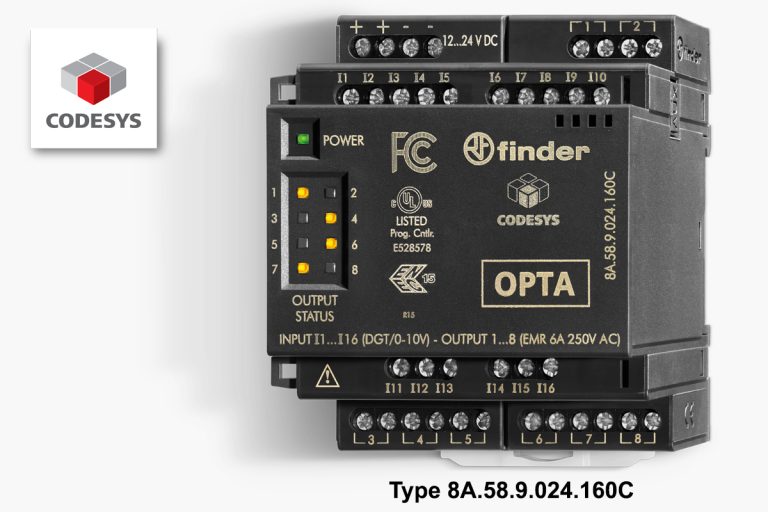

<h4 style="padding-left: 40px;">EMR</h4>
<ul>
<li>16 digital/analog (0 … 10 V) inputs</li>
<li>8 EMR 6 A outputs</li>
<li>Nominal voltage 12 … 24 V DC</li>
</ul>

The Expansion Modules

<h1></h1>
<h4 style="padding-left: 40px;">SSR</h4>
<ul>
<li>16 digital/analog (0 … 10 V) inputs</li>
<li>8 SSR 3 A outputs</li>
<li>Nominal voltage 12 … 24 V DC</li>
</ul>

<h3></h3>

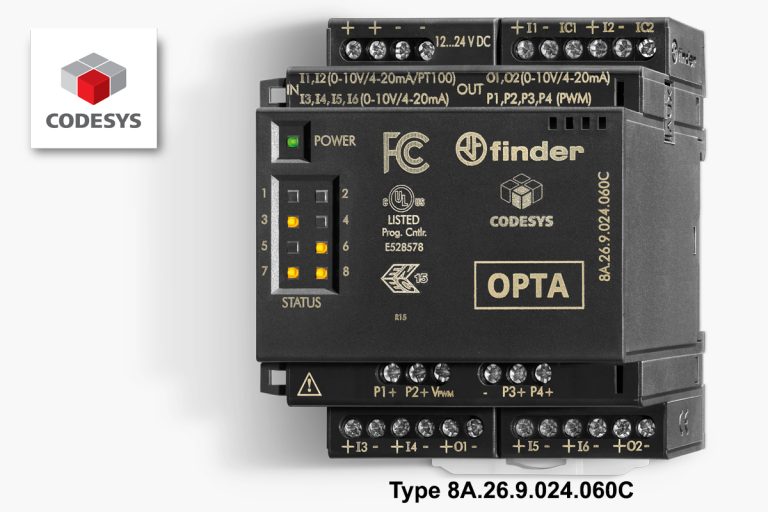

<h4 style="padding-left: 40px;">ANALOG</h4>
<ul>
<li>6 analog (0 … 10 V, 4 … 20 mA, PT 100) inputs</li>
<li>2 analog (0 … 10 V, 4 … 20 mA) inputs</li>
<li>4 PWM outputs</li>
<li>Nominal voltage 12 … 24 V DC</li>
</ul>

Using OPTA CODESYS® will lead you to one of the most popular PLC software platforms in the US. Choosing from one of 6 IEC 61131-3 languages, create a project for your OPTA solution. All the standard features of CODESYS® 3.5 are offered including visualization manager and simulation mode. ​

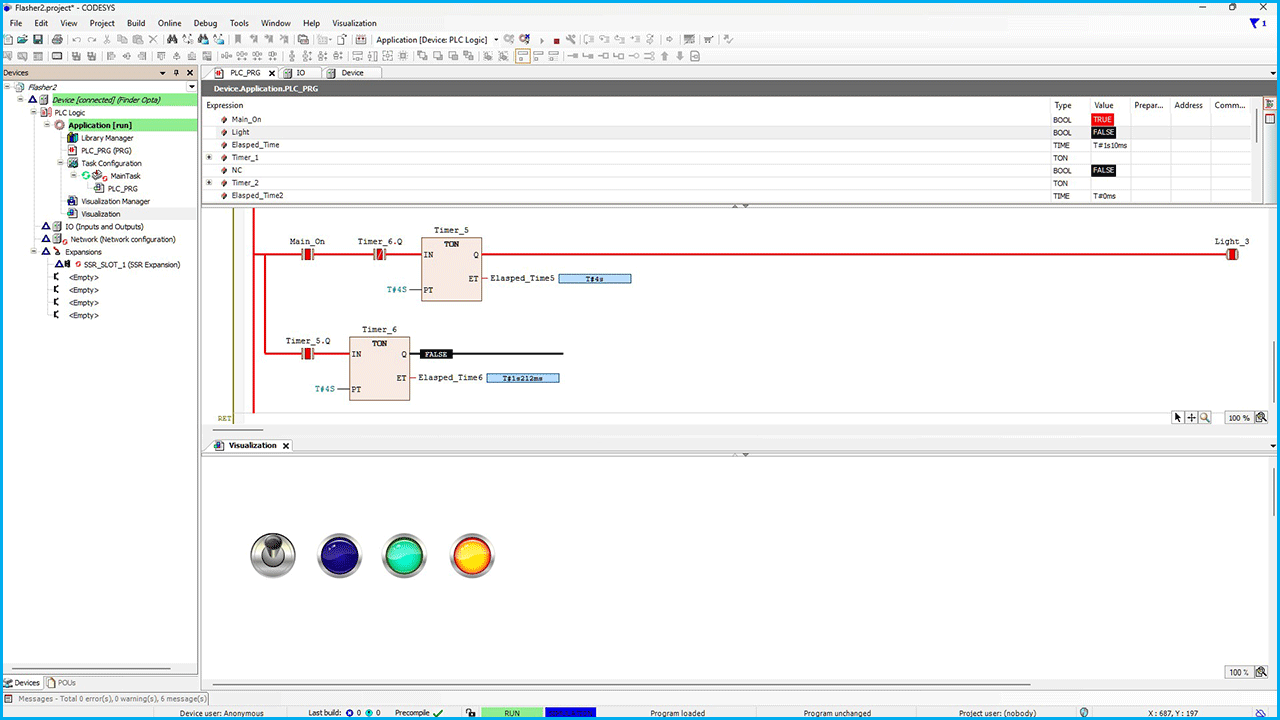

The Environment

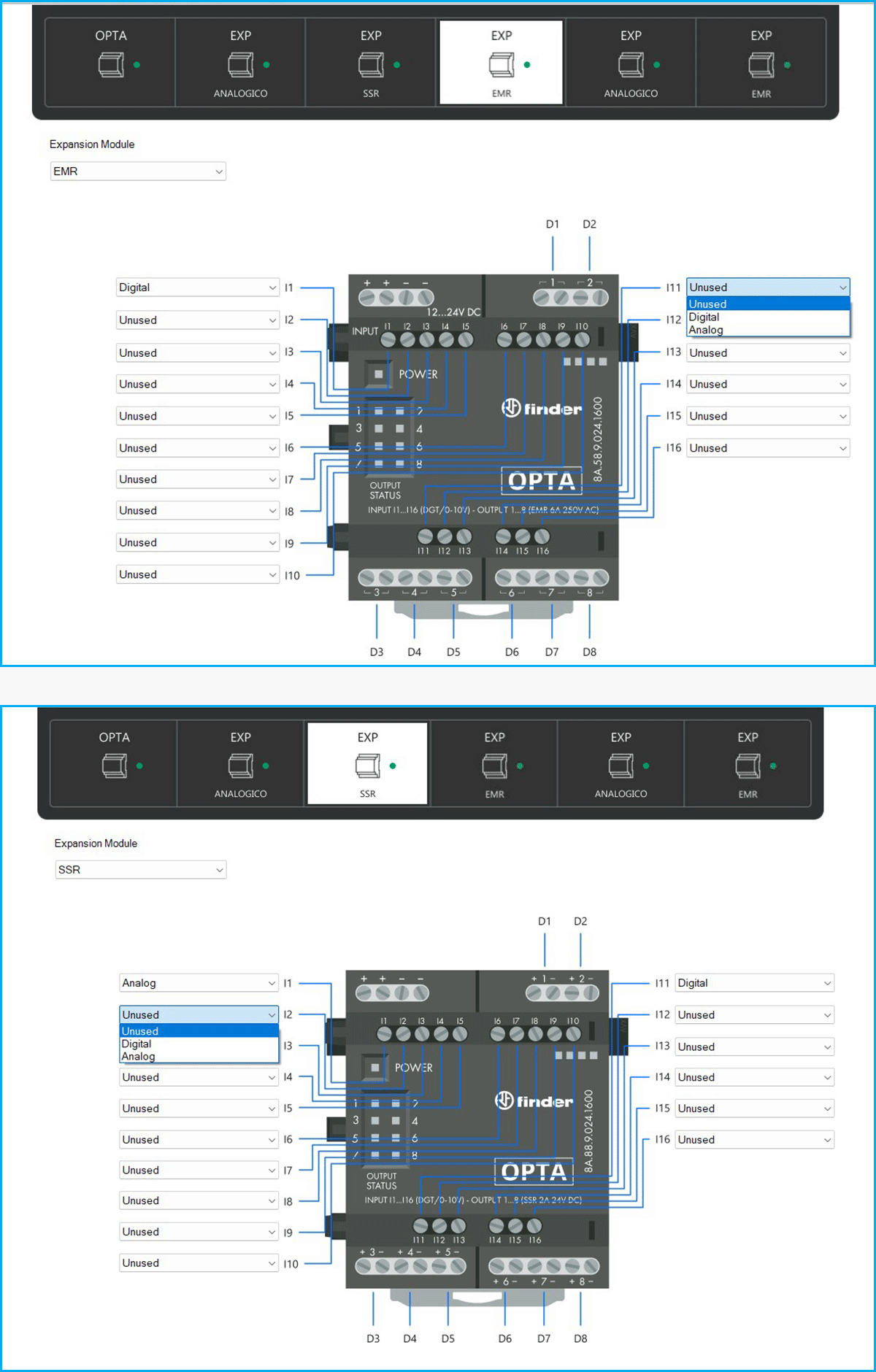

Configure the OPTA controller with ease using the well laid out integrated plug-in. Set up the gateway, connect the OPTA, login – done.

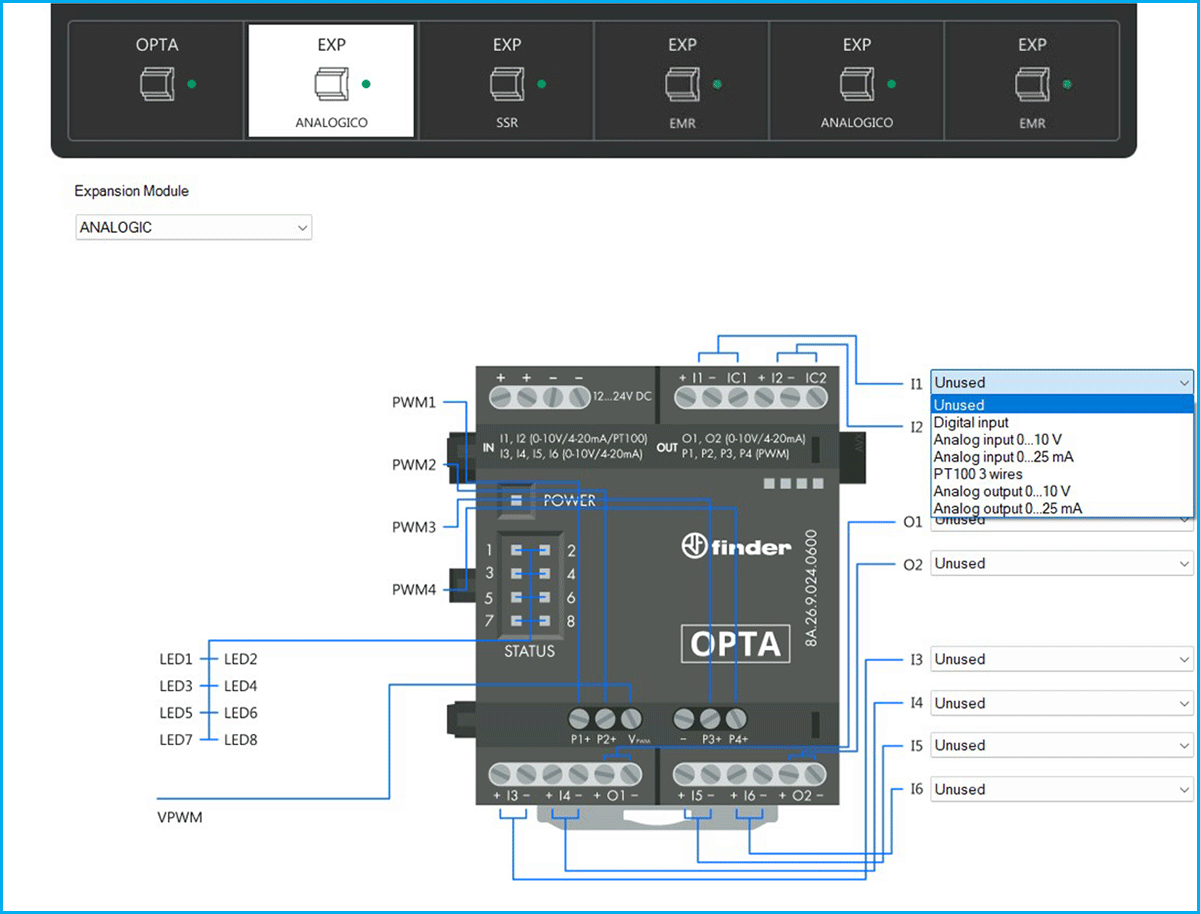

The Configuration

Add up to 5 expansion modules for each controller. ​Analog, EMR, or SSR versions.​

The Expansion

Analog
<ul>
<li>6 analog inputs 0 &#8211; 10 V,
4 &#8211; 20 mA, PT 100(2-3 wires)​</li>
<li>2 analog outputs 0 &#8211; 10 V,
4 &#8211; 20 mA​</li>
<li>4 PWM outputs​</li>
<li>inputs and outputs can be
custom configured.​</li>
</ul>

EMR or SSR
<ul>
<li>16 digital or analog inputs​</li>
<li>8 EMR 6 A outputs*​</li>
<li>8 SSR 3 A 24 V DC outputs*​​</li>
</ul>
* according to part number

Finder released two low profile switch mode power supplies for the OPTA (8A).

The Power Supplies

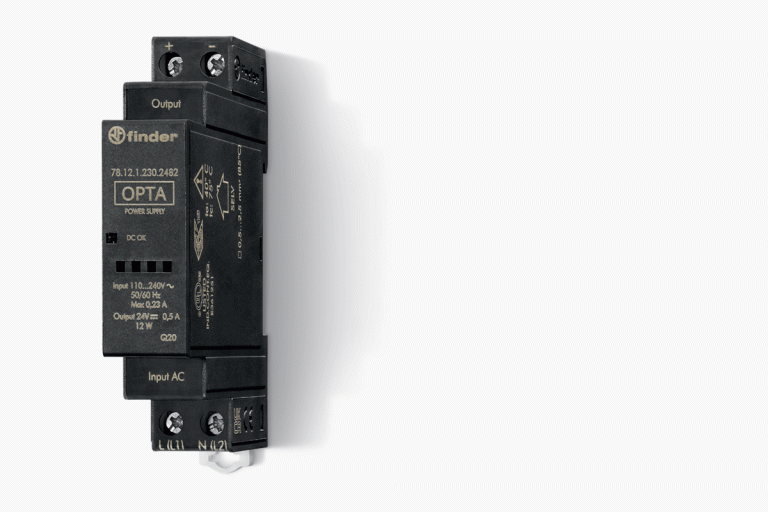

78.12….2482
<ul>
<li>Output 24 V DC – 0.5 A, 12 W SELV</li>
<li>1 x 1 OPTA and 5 expansion modules</li>
</ul>

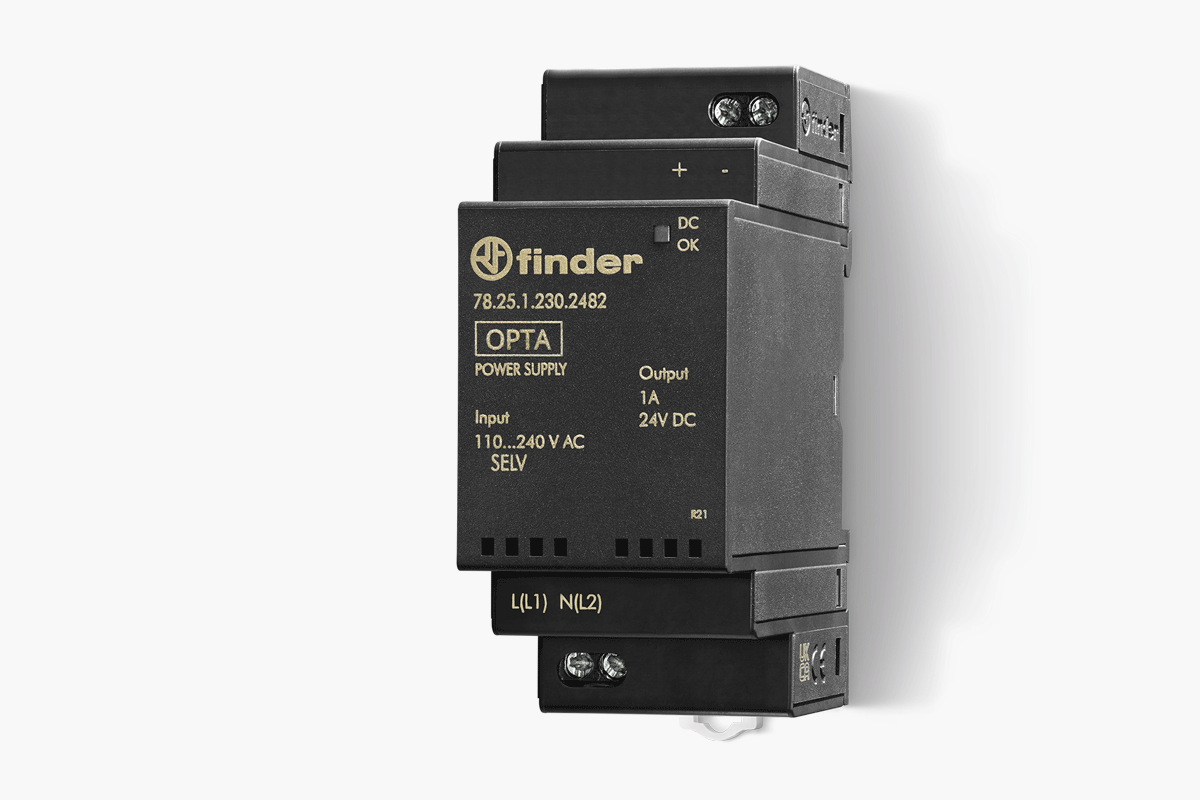

78.25….2482
<ul>
<li>Output 24 V DC – 1 A, 25 W SELV</li>
<li>2 x 1 OPTA and 5 expansion modules</li>
</ul>

Designed for the OPTA features include:
<ul>
<li style="list-style-type: none;">
<ul>
<li style="list-style-type: none;">
<ul>
<li style="list-style-type: none;">
<ul>
<li style="list-style-type: none;">
<ul>
<li style="list-style-type: none;">
<ul>
<li style="list-style-type: none;">
<ul>
<li>Low stand-by power consumption</li>
<li>Thermal protection</li>
<li>Short circuit protection</li>
<li>Overvoltage protection</li>
</ul>
</li>
</ul>
</li>
</ul>
</li>
</ul>
</li>
</ul>
</li>
</ul>
</li>
</ul>
&nbsp;
<h4 style="text-align: center;">Get started today with Finder and CODESYS® OPTA!</h4>

&nbsp;
&nbsp;
&nbsp;
<a href="https://cdn.findernet.com/app/uploads/S8AEN.pdf" target="_blank" rel="noopener">8A Datasheet</a>

Resources for 8A Series

Software and Tutorials

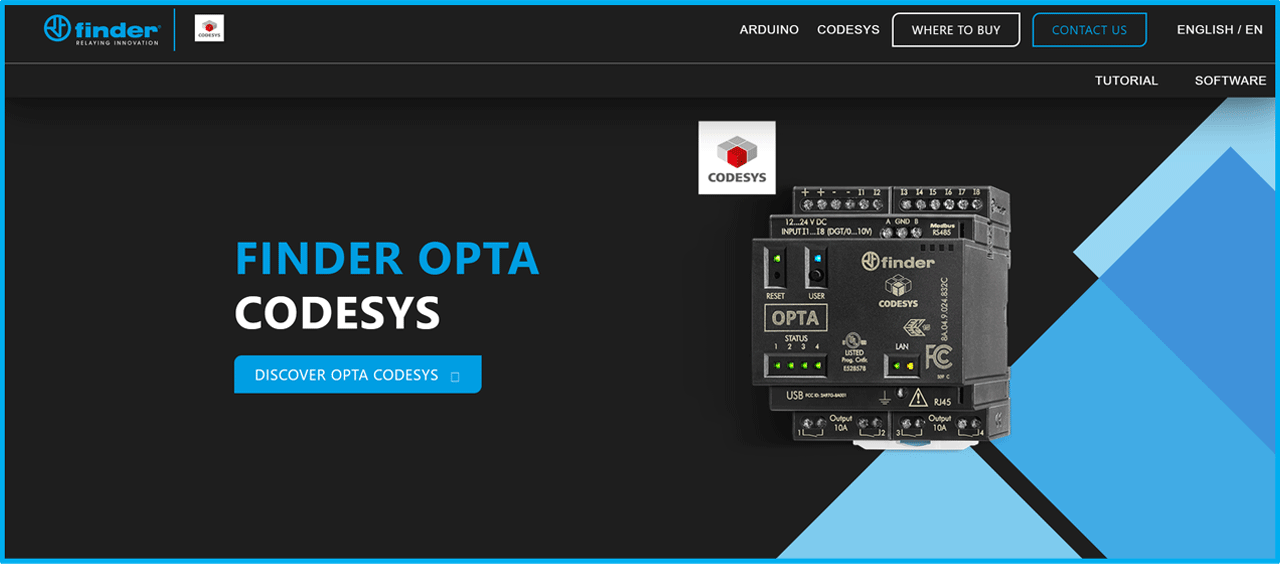

<a href="https://opta.findernet.com/en/codesys" target="_blank" rel="noopener">Finder OPTA 8A Series &#8211; Tutorials and Software</a>

<a href="https://calendly.com/finder-sales" target="_blank" rel="noopener">Schedule a virtual meeting</a> to discuss the OPTA CODESYS® today!

<h4 style="text-align: center;">See the difference. Explore the difference. Enhance your designs with Finder.</h4>

8A Series - OPTA Programmable Logic Relays

OPTA is a Programmable Logic Relay (PLR) with 8 digital/analog inputs (0…10 V). Programmable both with a traditional language (Ladder) as well as with an innovative and open source language (IDE / ARDUINO).
Programmable also with Codesys (only Type 8A.04-832C).
With USB (Type C) high speed port for programming and power delivery, data logging (via memory stick)
The range:
Type 8A.04-8300
&#8211; Lite with USB (Type C high speed port), ETH
Tipo 8A.04-8310
&#8211; Plus with USB (Type C high speed port), ETH and Modbus RS485
Tipo 8A.04-832x
&#8211; Advanced with USB (Type C high speed port), ETH, Modbus RS485, Wi-Fi and BLE

INTRODUCING THE NEW OPTA PLR WITH CODESYS®

Programming for IEC 61131-3 Languages
