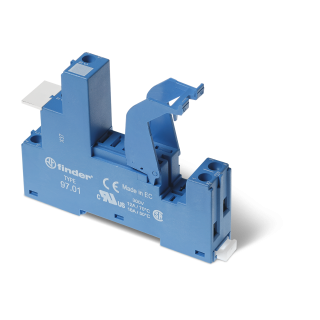

Type 97.01 - Socket with screw (box clamp) terminals

  • Nominal rating 16 A-250 V AC 8 A-250 V AC
  • Dielectric strength 6 kV (1.2/50 μs) between coil and contacts

Type 97.02 – Socket with screw (box clamp) terminals

  • Nominal rating 16 A-250 V AC 8 A-250 V AC
  • Dielectric strength 6 kV (1.2/50 μs) between coil and contacts

Type 97.11 - PCB socket

  • Nominal rating 12 A - 250 V (see diagram L97) 8 A - 250 V
  • Dielectric strength 6 kV (1.2/50 μs) between coil and contacts

Type 97.12 - PCB socket

  • Nominal rating 12 A - 250 V
  • Dielectric strength 6 kV (1.2/50 μs) between coil and contacts

Type 97.51 - socket with screwless (spring clamp) terminals

  • Nominal rating 10 A - 250 V AC 8 A - 250 V AC
  • Dielectric strength 6 kV (1.2/50 μs) between coil and contacts

Type 97.52 - Socket with screwless (spring clamp) terminals

  • Plastic retention and release clip
  • Metal retaining clip 097.71

Type 97.P1 - Socket with Push-in terminals

  • Nominal rating 10 A-250 V AC 8 A-250 V AC
  • Dielectric strength 6 kV (1.2/50 μs) between coil and contacts

Type 97.P2 - Socket with Push-in terminals

  • Nominal rating 10 A-250 V AC, 8 A-250 V AC
  • Dielectric strength 6 kV (1.2/50 μs) between coil and contacts

ACCESSORIES

046.05
046.05 with relay

Flange mount adaptor

For relays types 46.52 and 46.61

046.07
046.07 with relay

35 mm rail adaptor

For relays types 46.52 and 46.61

060.48

Sheet of marker tags

-CEMBRE Thermal transfer printers
-48 tags

097.01

Plastic retaining and release clip

For 46 series

097.58

8-way jumper link

Rated values: 10A – 250V

For 97 series.

097.52

2-way jumper link

Rated values: 10A – 250V

For 97 series.

097.42

2-way jumper link

Rated values: 10A – 250V

For 97 Series.

097.00

Marker tag holder

For 97.P1 and 97.P2 sockets

095.18

8-way jumper link

Rated values: 10A – 250V
Available:
-095.18 (blue)
-095.18.0 (black)

Metal retaining clip

For 97 series

Identification tag

For 97 series

Type
Delete filters
Description
Language
Delete filters
Download
File type
CE
EurAsian Conformity (EAC)
Canadian Standard Association (CSA)
UL RECOGNIZED
Istituto Italiano del Marchio di Qualità (IMQ)
RELATED SERIES
PRODUCTS

46 Series

Miniature Industrial relay 8 - 16A

Configure products / 97 Series

Features

Reset
Type
01
for relays 46.61 - Screw terminal (Box clamp) socket panel or 35 mm rail mount
02
for relays 46.52 - Screw terminal (Box clamp) socket panel or 35 mm rail mount
51
for relays 46.61 - Screwless terminal socket panel or 35 mm rail mount
52
for relays 46.52 - Screwless terminal socket panel or 35 mm rail mount
11
for relays 46.61 - PCB socket
12
for relays 46.52 - PCB socket
Packaging
SPA
Plastic retaing clip
SMA
Metal retaing clip
  • 97
  • -
  • -

  • 97
  • -
