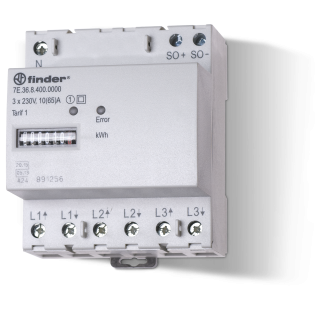

Type 7E.36 - Energy meter

  • Compliant with EN 62053-21 and EN 50470 standards
  • PTB approval

Type 7E.12 - Energy meter

  • Compliant with EN 62053-21 and EN 50470 (Physikalisch - Technischen Bundesanstalt)
  • Accuracy class 1/B

Type 7E.13 - Energy meter

  • Compliant with EN 62053-21 and EN 50470 (Physikalisch - Technischen Bundesanstalt)
  • PTB approval (7E.13 and 7E.16) (Physikalisch - Technischen Bundesanstalt)

Type 7E.16 - Energy meter

  • Compliant with EN 62053-21 and EN 50470 standards
  • PTB approval

Type 7E.64 - Energy meter

  • 7E.64.8.230.0001. Reference current 5 A (40 A Maximum), 1-phase 230 V AC, kWh + instantaneous voltage & kW, V, backlit LCD display
  • 7E.64.8.230.0010. Reference current 5 A (40 A Maximum), 1-phase 230 V AC, kWh, kVAh or kvarh + instantaneous V, A, PF, kW, kVA, kvar & Hz, MID certified, backlit LCD display

Type 7E.78 - Energy meter

  • 7E.78.8.400.0112. Reference current 5 A (80 A Maximum), Three-phase systems - 3 or 4 wire, Dual tariff, MID certified
  • 7E.78.8.400.0212. Reference current 5 A (80 A Maximum), RS485 Modbus integrated interface, Three-phase systems - 4 wire, Dual tariff, MID certified

Type 7E.86 - Energy meter

  • 7E.86.8.400.0112. Reference current 1 A (6 A Maximum), Three-phase systems - 3 or 4 wire, Usable with current transformer*, Programmable CT secondary*, Dual tariff, MID certified
  • 7E.86.8.400.0212. Reference current 1 A (6 A Maximum), RS485 Modbus integrated interface, Three-phase systems - 4 wire, Usable with current transformer*, Programmable CT secondary*, Dual tariff, MID certified

ACCESSORIES

07E.13

Terminal cover

-Forr for type 7E.13
-For the tamper-proof lead seal use two terminal covers

07E.16

Terminal cover

-For type 7E.12, 7E.16 and 7E.36
-7E.12, 7E.16: for the tamper-proof lead seal use two terminal covers
-7E.36: for the tamper-proof lead seal use four terminal covers

Type
Delete filters
Description
Language
Delete filters
Download
File type
CE

Configure products / 7E Series

Features

Reset
Function
1
1-phase
2
1-phase with LC-Display
3
3-phase
4
3-phase with LC-Display
5
3-phase with LC-Display for current transformer operation
6
1-phase with LC-Display
7
3-phase with LC-Display, direct connection
8
3-phase with LC-Display for current transformer operation
Current
2
25 A
3
32 A
6
6 A (current transformer up to 1,500 A)
6
65 A
4
40 A
8
80 A
6
6 A (current transformer up to 50,000 A)
Supply version
8
AC (50Hz)
8
AC (50/60Hz)
Supply voltage
230
230 V
400
3 x 230/400 V
Standard
0
Standard
Standard
0
Standard
Options
0
SO +/- pulse output
1
Infra-red comms. port + two SO pulse outputs
2
RS485 Modbus integrated interface + SO pulse output
3
M-Bus integrated interface + SO pulse output
4
Ethernet integrated interface plus SO pulse output
Approvals
0
Standard
1
MID compliant versions
Special version
0
Single tariff
2
Standard
2
Dual tariff
1
kWh only
  • 7E
  • -
  • -
  • -
  • -
  • -
  • -
  • -
  • -
