Type 93.01 - screw terminal socket
- 1 contact 6 A
- Socket for relays of Series 34
Explore finder
GO TO
Types List
Types List
Documentation
Approvals
Video

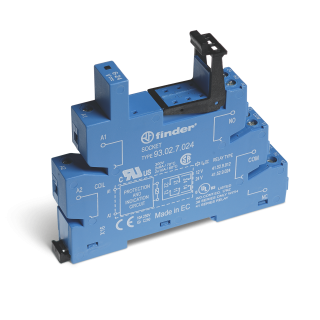

Type 93.02 - Screw terminal socket
- Nominal rating 10 A - 250 V
- Dielectric strength 6 kV (1.2/50 μs) between coil and contacts
Type 93.11- PCB socket
- Nominal rating: 6 A - 250 V
- Dielectric strength: ≥ 6 kV (1.2/50 μs) between coil and contacts
Type 93.21 - timed socket for 34 series with screwless terminals
- Multi-function timer
- AC and DC supply
Type 93.51 - socket with screwless terminals
- Width 6.2 mm
- jumper link for common connection up to 20-ways
Type 93.52 - socket with screwless terminals
- Nominal ratings 10 A - 250 V
- Dielectric strength 6 kV (1.2/50 μs) between coil and contacts
Type 93.60 - Push-In terminal socket
- Space saving 6.2 mm wide
- Connections for 16-way jumper link
Type 93.61 - Screw terminal socket
- Space saving 6.2 mm wide
- Connections for 16-way jumper link
Type 93.62 – Screw terminal socket
- Space saving 6.2 mm wide
- Connections for 16-way jumper link
Type 93.63 – Screw terminal socket
- Space saving 6.2 mm wide
- Output with fuse module option
Type 93.64 - Screw terminal socket
- Space saving 6.2 mm wide
- Connections for 16-way jumper link
Type 93.65 - Push-In terminal socket
- Space saving 6.2 mm wide
- Connections for 16-way jumper link
Type 93.66 - Push-In terminal socket
- Space saving 6.2 mm wide
- Output with fuse module option
Type 93.67 - Push-In terminal socket
- Space saving 6.2 mm wide
- Connections for 16-way jumper link
Type 93.68 - Screw terminal timed socket
- Space saving 6.2 mm wide
- Timer adjustment via top mounted rotary knob accessible after assembly
Type 93.69 - Push-In terminal timed socket
- Space saving 6.2 mm wide
- Timer adjustment via top mounted rotary knob accessible after assembly
ACCESSORIES
20-way jumper link
– Rated values 36 A – 250 V
Available:
– 093.20.0 (black)
– 093.20.1 (red)
Plastic separator
– For 93.02 and 93.52 sockets
– Thickness 2 mm
– Required at the start and the end of a group of interfaces
– Can be used for visual separation group, must be used for:- protective separation of different voltages of neighbouring PLC interfaces according to VDE 0106-101
– protection of cut jumper links
8-way jumper link
Rated values: 36 A – 250 V
Available:
-093.08.0 (black)
-093.08.1 (red)
Sheet of marker tags
-Plastic
-48 tags
-6 x 10 mm
Sheet of marker tags
– CEMBRE Thermal transfer printers
– plastic
– 48 tags
– 6 x 12 mm
16-way jumper link
-Rated values: 6 A – 250 V
-Possibility of multiple connection, side by side
Available:
– 093.16.0 (black)
– 093.16.1 (red)
Dual-purpose plastic separator
-1.8 mm or 6.2 mm separation
Output fuse module
– For 5 x 20 mm fuses up to 6 A, 250 V
– Easy visibility of the fuse condition through the window
– Quick connection to socket
Terminal doubler (for socket Push-in only)
-Total load: 6 A – 300 V
-Max. wire size
mm2 2 x 1.5
AWG 2 x 16
MasterADAPTER
The MasterADAPTER permits the easy connection of A1/A2 terminals of up to MasterINTERFACE modules to PLC outputs via a 14-Pole ribbon cable, plus simple 2-wire power supply connection.
